Brick Residential Tower

A mid-rise brick residential building, photographed at close range on every elevation and processed into a 3D model of the full exterior. Callouts were placed on individual photographs inside the viewer, each tied to its position on the building, and exported as an image condition report.

What Was Captured

Every elevation photographed at close range, including the roof and bulkheads
The full exterior processed into a photogrammetry model
Callouts placed on individual photographs, each recorded with its position on the building
An image condition report exported from the viewer, one page per callout

From the Project

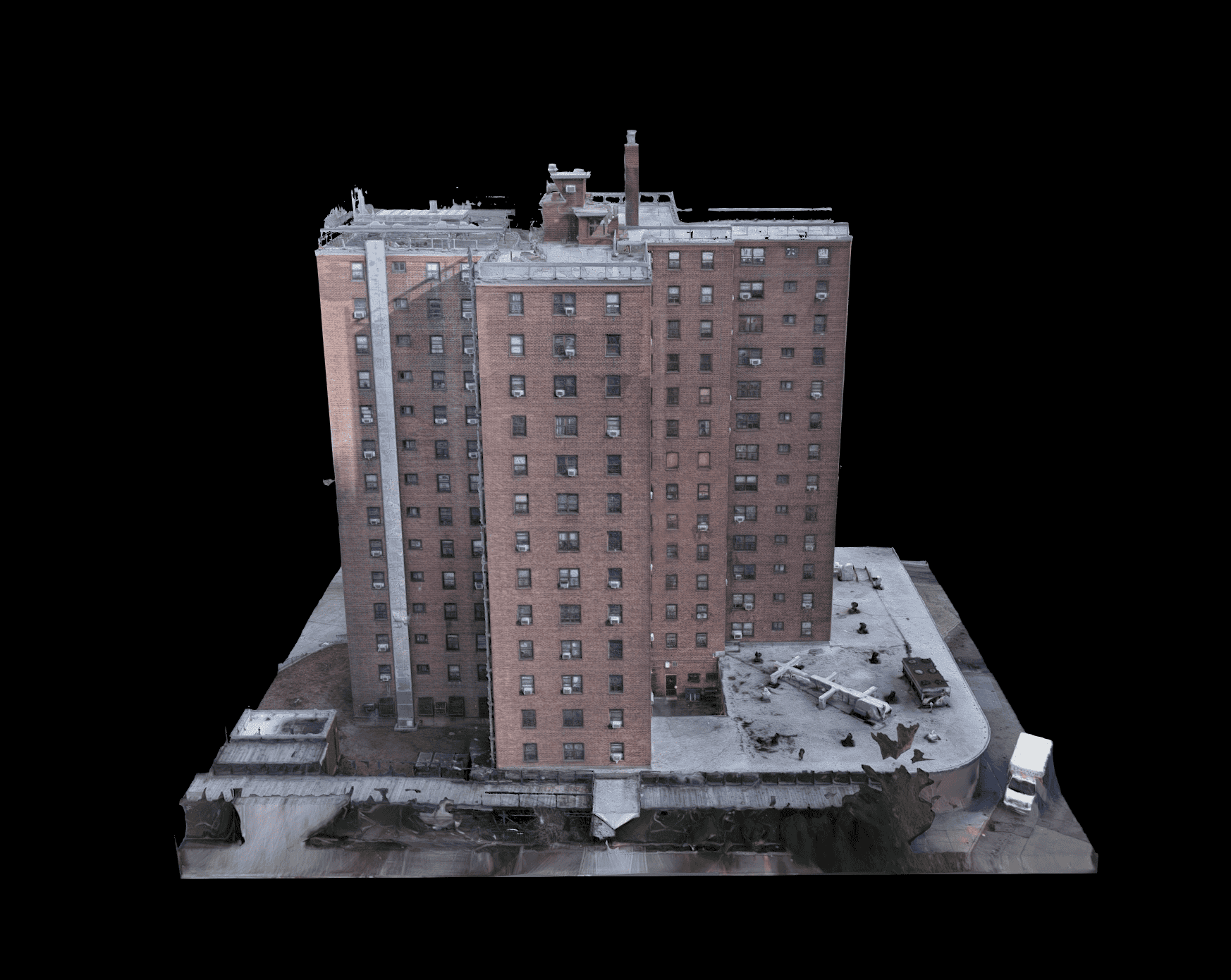

Photogrammetry model of the brick residential building, seen from above one corner — The full exterior model

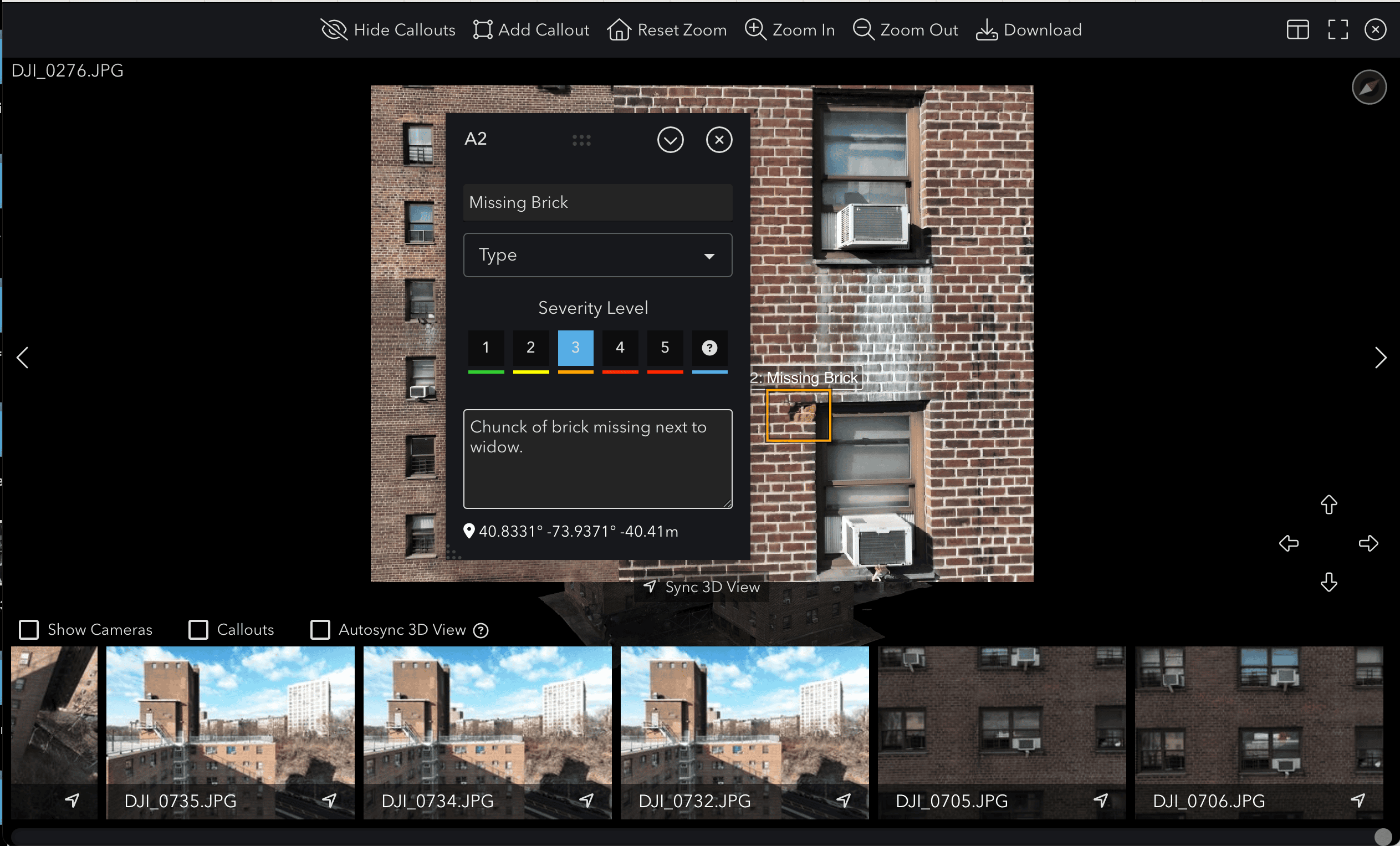

The viewer showing a single photograph of the brick façade with a callout panel open beside a marked area next to a window, and a filmstrip of neighbouring photographs below — A callout on one photograph, with its position on the building

The same photograph at full resolution, showing the marked area of brickwork beside a window at close range — The same callout at full resolution

One page of the exported image condition report: the photograph with the callout outlined, a close-up crop, and the callout title, note, timestamp and coordinates beneath it — Image condition report, one page per callout

What Was Delivered

4K imagery of every elevation
Interactive 3D model of the full exterior
Viewer access to measure, annotate and export
Image condition report as a PDF
